MH(R)/HH/M(R) Slurry Pump

MH Pump Description

Type MH/HH/M slurry pumps are cantilevered, horizontal, and centrifugal slurry pumps. Mud pumps, impurity pumps, dredge pumps and desilting pumps all belong to the category of slurry pumps.

The slurry pump is designed for heavy-duty work to transfer large abrasive slurry with solid particles. The wet parts of the pump are made of chrome alloy or rubber for different liquid use.

Slurry Pump Features

■ Thin liner and impeller of MH model can be changeable and material can be either anti-abrasive metal or rubber
■ Rubber material wet parts are mainly used for transporting the slurry which contains fine, non-sharp particle size
■ The shaft seals for type MH and MHR pumps can be adoptable of gland seal, expeller seal, and mechanical seal
■ The discharge can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications

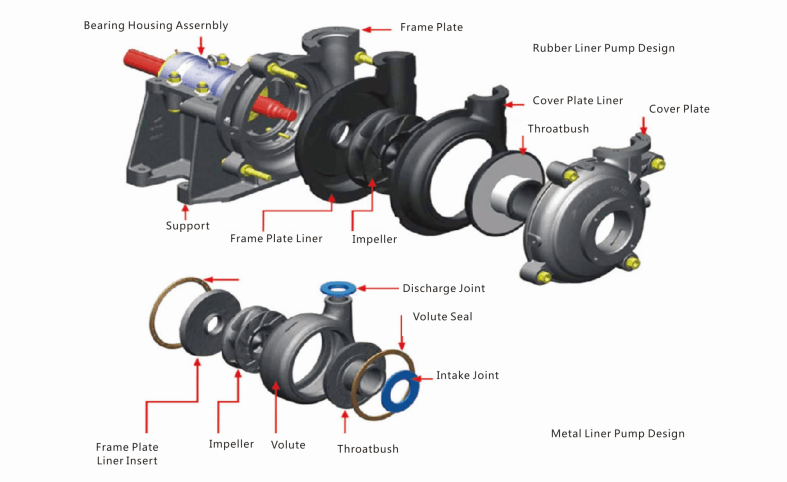

MH Pump Structure

■ Replaceable wear-resistant metal lining or rubber lining
■ Impeller can be made of wear-resistant metal or rubber
■ The shaft seal can adopt a packing seal, impeller seal, and mechanical seal.

MH Slurry Pump Working Condition
